中空大通孔油壓卡盤 BD
零售價
0.0
Yuan
市場價
0.0
Yuan
瀏覽量:
1026
產品編號
數量
-
+
庫存:
0
產品描述
參數
|

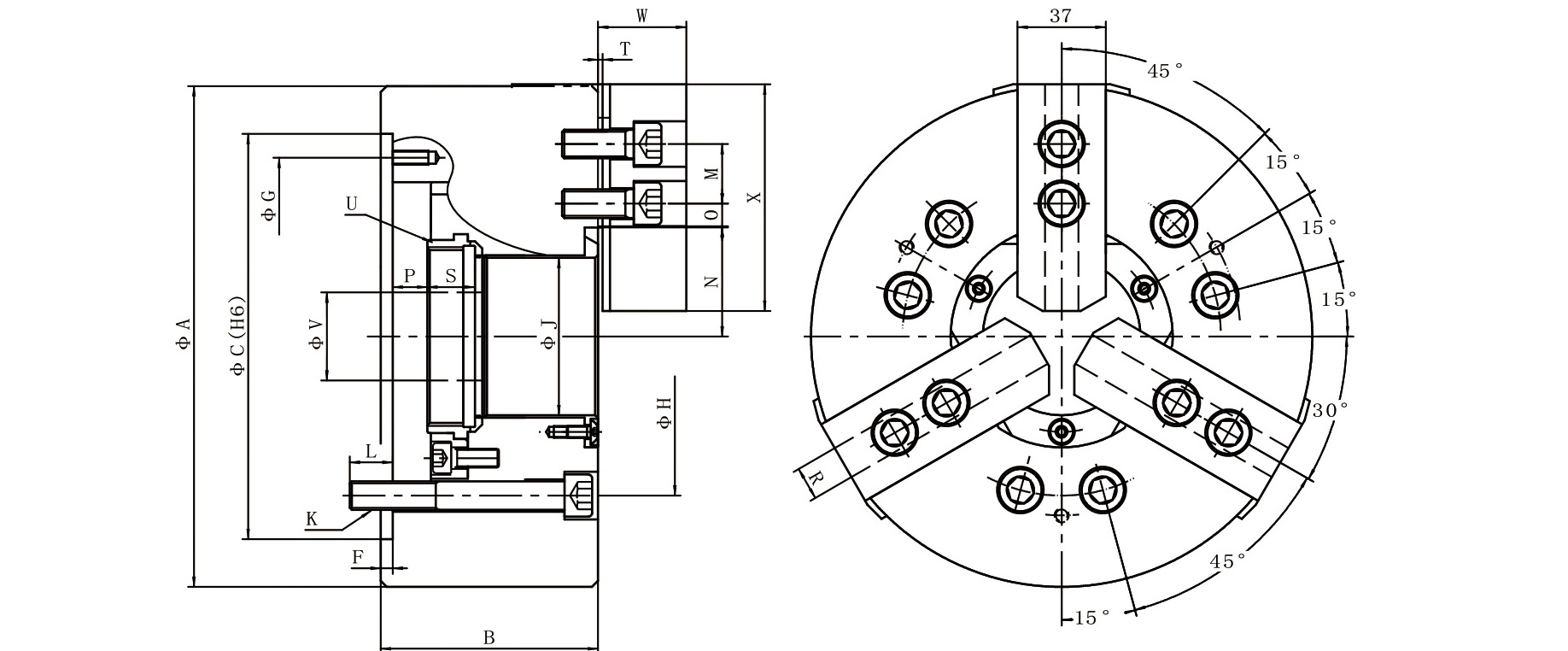

尺寸Dimensions 型號Type |
A(mm) |
B(mm) |
C(H6)(mm) |
F(mm) |
G(mm) |
H(mm) |
J(mm) |
K(mm) |
L(mm) |
M(mm) |
N(mm) |
|
BD-206
|
168
|
81
|
140
|
5
|
116
|
104.8
|
53
|
6-M10
|
16
|
20
|
29.5~32
|
|
BD-208
|
210
|
91
|
170
|
5
|
150
|
133.4
|
66
|
6-M12
|
18
|
25
|
35~38.7
|
|
BD-210
|
254
|
100
|
220
|
5
|
190
|
171.4
|
81
|
6-M16
|
19
|
30
|
46.6~51
|
|
BD-212
|
304
|
110
|
220
|
6
|
190
|
171.4
|
106
|
6-M16
|
25
|
30
|
56~61.3
|
|
BD-215
|
381
|
130
|
300
|
6
|
260
|
235
|
117.5
|
6-M20
|
28
|
43
|
77.4~82.7
|
|
BD-218
|
450
|
133
|
380
|
6
|
330.2
|
235
|
117.5
|
6-M20
|
30
|
43
|
76.7~82
|
|
BD-221
|
530
|
140
|
380
|
6
|
330.2
|
330.2
|
140
|
6-M22
|
31
|
60
|
93.2~98.5
|
|
BD-224
|
610
|
149
|
380
|
6
|
330.2
|
330.2
|
165
|
6-M22
|
32
|
60
|
102.7~108
|
|
尺寸Dimensions 型號Type |
O(mm) |
P(mm) |
Q(mm) |
R(mm) |
S(mm) |
T(mm) |
U(mm) |
V(mm) |
W(mm) |
X(mm) |
|
BD-206
|
7~24
|
-1~11
|
31
|
12
|
19
|
2
|
M60*2P
|
20
|
37
|
73
|
|
BD-208
|
10~30
|
-1.5~14.5
|
35
|
14
|
20
|
2
|
M75*2P
|
30
|
38
|
95
|
|
BD-210
|
12~34
|
-10.5~8.5
|
40
|
16
|
25
|
2
|
M90*2P
|
40
|
43
|
110
|
|
BD-212
|
12~46
|
-15~8
|
50
|
21
|
28
|
2
|
M115*2P
|
50
|
51
|
130
|
|
BD-215
|
13~46
|
-15~8
|
62
|
22
|
39
|
5
|
M130*2P
|
60
|
66
|
165
|
|
BD-218
|
18.25~78.25
|
-12~11
|
62
|
22
|
33
|
5
|
M130*2P
|
60
|
66
|
165
|
|
BD-221
|
21.5~87.5
|
-12~11
|
65
|
25
|
33
|
5
|
M155*3P
|
80
|
66
|
180
|
|
BD-224
|
21.5~117.5
|
-3~20
|
65
|
25
|
35
|
5
|
M175*3P
|
80
|
74
|
180
|
|
尺寸Dimensions 型號Type |
通孔直徑 Thru-Hole Diameter(mm) |
柱塞行程Plunger stroke(mm) |
爪行程（直徑）Jaw stroke(DIA.mm) |
最高回轉速 Max mum speed(mm) |
最大拉力 MaxiPull Force kgf(KN) |
最大靜夾持力 Maximu clamping Force kgf(KN) |
搭配油缸型號 Matchingcylinder |
夾持范圍 Clamping range(mm) |
最高使用壓力 Maxipressure kigf/cm(mpa) |
重量 Weight(kg) |
|
|
最大Max. |
最小Max. |
||||||||||
|
BD-206
|
53
|
12
|
5.5
|
6000
|
20
|
58.5
|
BS1246
|
170
|
19
|
2.7
|
11.8
|
|
BD-208
|
66
|
16
|
7.4
|
5000
|
32
|
99
|
BS1552
|
210
|
23
|
2.6
|
23
|
|
BD-210
|
81
|
19
|
8.8
|
4500
|
48.8
|
126
|
BS1875
|
254
|
41
|
2.5
|
32
|
|
BD-212
|
106
|
23
|
10.6
|
3500
|
59
|
153
|
BS2091
|
315
|
47
|
2.4
|
52
|
|
BD-215
|
117.5
|
23
|
10.6
|
2200
|
71
|
178
|
BS2511
|
381
|
30
|
2.4
|
120
|
|
BD-218
|
117.5
|
23
|
10.6
|
1800
|
71
|
178
|
BS2511
|
450
|
35
|
2.2
|
164
|
|
BD-221
|
140
|
23
|
10.6
|
1500
|
89
|
232
|
BS2511
|
530
|
90
|
2.9
|
235
|
|
BD-224
|
165
|
23
|
10.6
|
1200
|
89
|
232
|
BS2511
|
610
|
110
|
2.9
|
293
|
